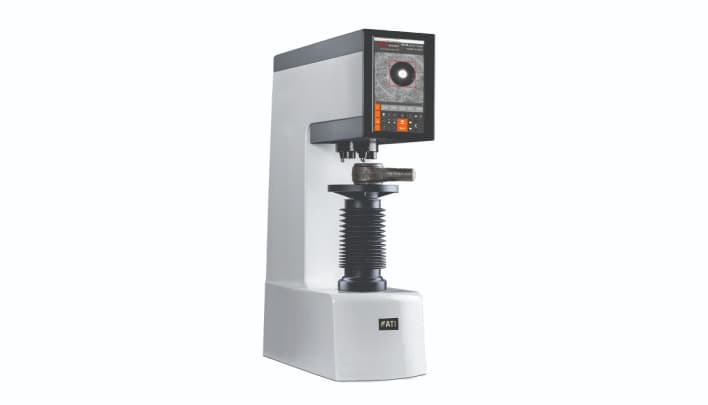

Thiết bị kiểm tra độ cứng Brinell tự động
Thiết bị kiểm tra độ cứng Brinell tự động
| Model: | ATI B3000 |
| Brinell hardness scales: | HBW 2.5/62.5 , HBW 2.5/187.5 , HBW 5/62.5 , HBW 5/250 , HBW 5/750 , HBW 10/100 , HBW 10/500 , HBW 10/1500 , HBW 10/3000 |
| Test force (kgf): | 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5 Kgf (1839N), 250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (4905n), 1000 Kgf (7905n), 1500 Kgf (14710N), 3000 Kgf (29420N) |
| Loading system: | Electronic control of load cells in “Closed-Loop” |
| Auto turret standard: | 2 steps (1indenter / 1 optical len 20X) |
| Auto turret as option: | 5 steps (3 indenters / 2optic lens 20X 40X) |
| Auto turret rotation: | Orizzontally 360° (2 steps or 5 steps) |
| Compliance standards: | ISO 6506, ASTM E10 and equivalents |
| Accuracy: | Accuracy better than 1% (62.5 – 3000 Kgf); Accuracy better than 0.5% (500 – 3000 Kgf) |
| Measuring device resolution: | 0.1 μm |
| Dwell time: | 0-99 seconds |
| Height capacity: | 310 mm |
| Depth capacity: | 250 mm |
| Measuring range: | 15.9-650 HBW (ASTM E10 (Recommended effective hardness value) |
| Camera resolution: | 1,2 MPixel |
| Measurement methods: | Manual and automatic |
| Data store: | The measured values are stored in EXCEL format on a USB flash disk |
| Power supply: | 220 V – 50/60 Hz single phase |
| Total dimensions: | 120 x 120 x 160 cm / 47 x 47 x 65” – Weight: 160/200 kg |
